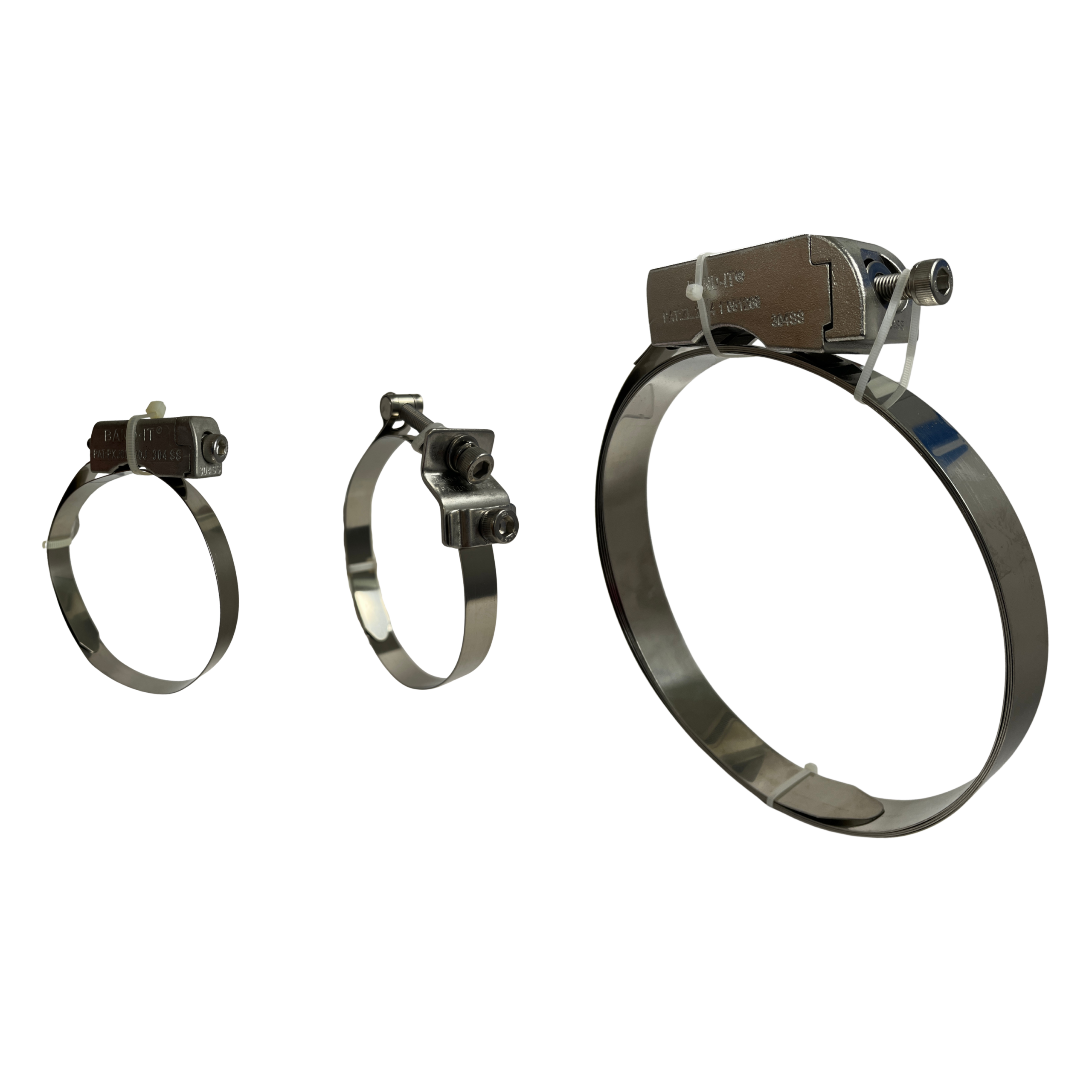

Mini & Heavy-Duty Bolt Clamp Casting & Retainers

Bolt clamps designed for easy installation using a single hex key, allowing one person to assemble quickly. Available in a wide range of lengths, strengths, and materials, these bolt clamps are ideal for diverse municipal and telecom mounting applications.

Mini & Heavy-Duty Bolt Clamp Casting & Retainers
Mini & Heavy-Duty Bolt Clamp Casting & Retainers
Mini & Heavy-Duty Bolt Clamp Casting & Retainers
  • Vibration Tested
  • Corrosion Resistant: Available in 304 & 316 stainless steel
  • Easy Assembly and Installation: Can be installed by with a hex key by a single technician
  • Cost Efficient: Parts can be reused and relocated after initial installation



Pricing & Purchasing

Product Specifications

Part No. Material Width (In) Length (In) Max Bolt Torque (N.m) Max DIA Single Wrap (In) Loop Tensile Strength (Lbs) Package Quantity

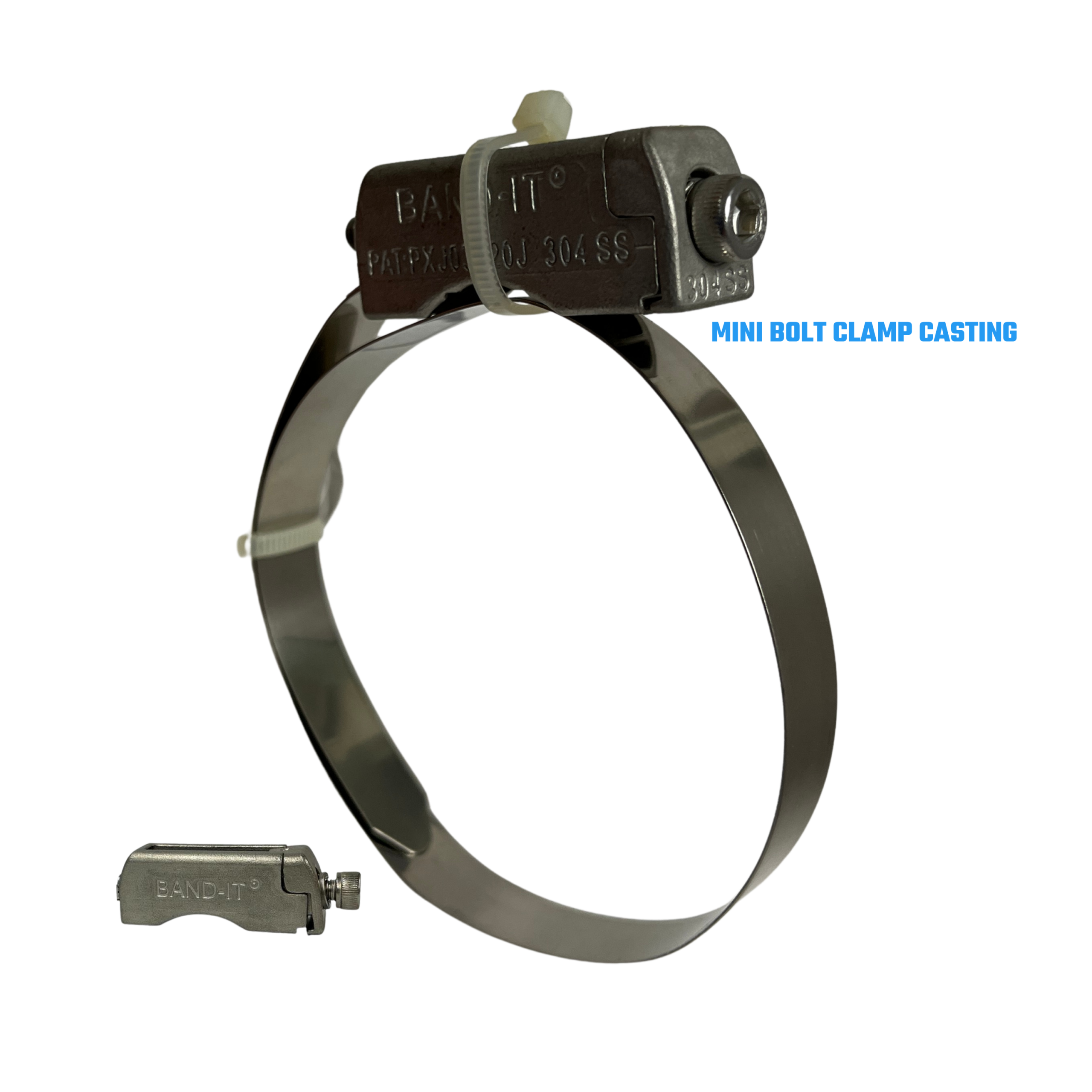

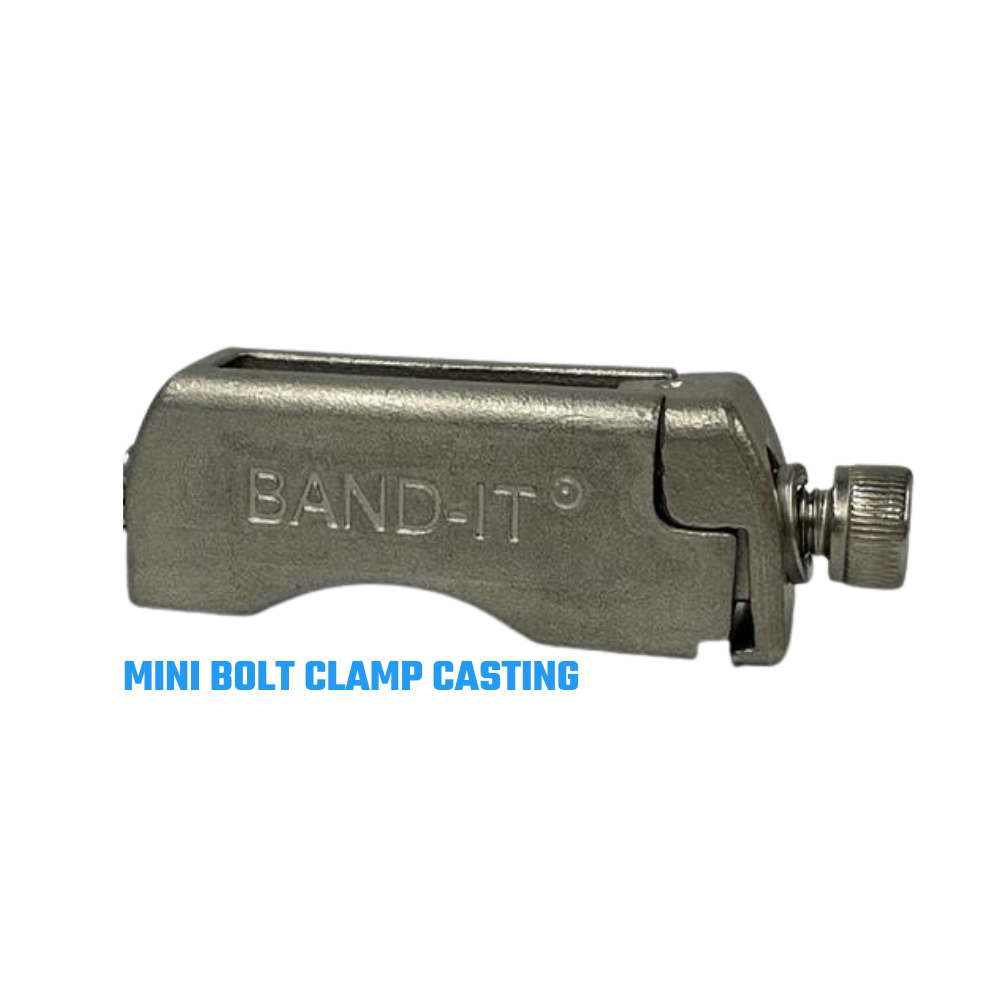

Mini Bolt Clamp Casting
D10309 304 SS 1/2 15.7 10 4.3 1416 1/EA
D10319 304 SS 1/2 33.5 10 9.8 1416 1/EA
D10329 304 SS 1/2 51.2 10 15.4 1416 1/EA
D10409 316 SS 1/2 15.7 10 4.3 1416 1/EA
D10419 316 SS 1/2 33.5 10 9.8 1416 1/EA
D10429 316 SS 1/2 51.2 10 15.4 1416 1/EA
D40309 304 SS 5/8 15.7 10 4.3 1685 1/EA
D40319 304 SS 5/8 33.5 10 9.8 1685 1/EA
D40329 304 SS 5/8 51.2 10 15.4 1685 1/EA
D40409 316 SS 5/8 15.7 10 4.3 1685 1/EA
D40419 316 SS 5/8 33.5 10 9.8 1685 1/EA
D40429 316 SS 5/8 51.2 10 15.4 1685 1/EA

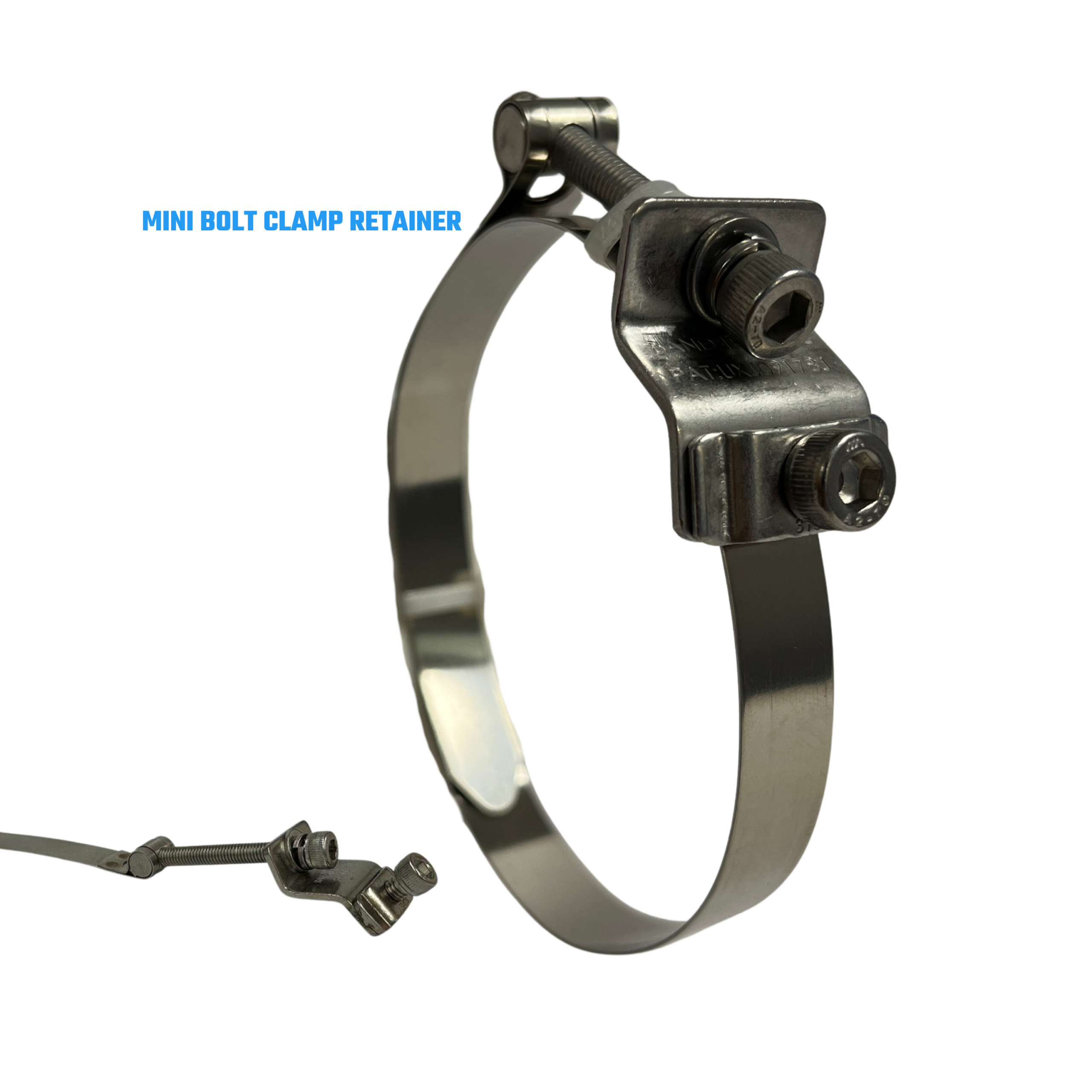

Mini Bolt Clamp Retainer
D20309 304 SS 1/2 15.7 10 4.3 1416 1/EA
D20319 304 SS 1/2 33.5 10 9.8 1416 1/EA
D20329 304 SS 1/2 51.2 10 15.4 1416 1/EA
D20409 316 SS 1/2 15.7 10 4.3 1416 1/EA
D20419 316 SS 1/2 33.5 10 9.8 1416 1/EA
D20429 316 SS 1/2 51.2 10 15.4 1416 1/EA
D20409-RS 316 SS 1/2 15.7 3 4.3 494.47 1/EA
Heavy Duty Bolt Clamp (Casting)
D60059 304 SS 1.1 35.4 25 7.9 4720 1/EA
D60109 304 SS 1.1 70.9 25 19.7 4720 1/EA
D60209 304 SS 1.1 82.7 25 23.6 4720 1/EA
D60309 304 SS 1.1 94.5 25 27.6 4720 1/EA
D60409 304 SS 1.1 106.3 25 31.5 4720 1/EA



Part No. Material Width (MM) Length (MM) Max Bolt Torque (N.m) Max DIA Single Wrap (MM) Loop Tensile Strength (Kg) Package Quantity
Mini Bolt Clamp Casting
D10309 304 SS 12.7 400 10 110 642 1/EA
D10319 304 SS 12.7 850 10 250 642 1/EA
D10329 304 SS 12.7 1300 10 390 642 1/EA
D10409 316 SS 12.7 400 10 110 642 1/EA
D10419 316 SS 12.7 850 10 250 642 1/EA
D10429 316 SS 12.7 1300 10 390 642 1/EA
D40309 304 SS 15.8 400 10 110 764 1/EA
D40319 304 SS 15.8 850 10 250 764 1/EA
D40329 304 SS 15.8 1300 10 390 764 1/EA
D40409 316 SS 15.8 400 10 110 764 1/EA
D40419 316 SS 15.8 850 10 250 764 1/EA
D40429 316 SS 15.8 1300 10 390 764 1/EA
Mini Bolt Clamp Retainer
D20309 304 SS 12.7 400 10 110 642 1/EA
D20319 304 SS 12.7 850 10 250 642 1/EA
D20329 304 SS 12.7 1300 10 390 642 1/EA
D20409 316 SS 12.7 400 10 110 642 1/EA
D20419 316 SS 12.7 850 10 250 642 1/EA
D20429 316 SS 12.7 1300 10 390 642 1/EA
D20409-RS 316 SS 12.7 400 3 110 224 1/EA
Heavy Duty Bolt Clamp (Casting)
D60059 304 SS 28.1 900 25 200 2141 1/EA
D60109 304 SS 28.1 1800 25 500 2141 1/EA
D60209 304 SS 28.1 2100 25 600 2141 1/EA
D60309 304 SS 28.1 2400 25 700 2141 1/EA
D60409 304 SS 28.1 2700 25 800 2141 1/EA
